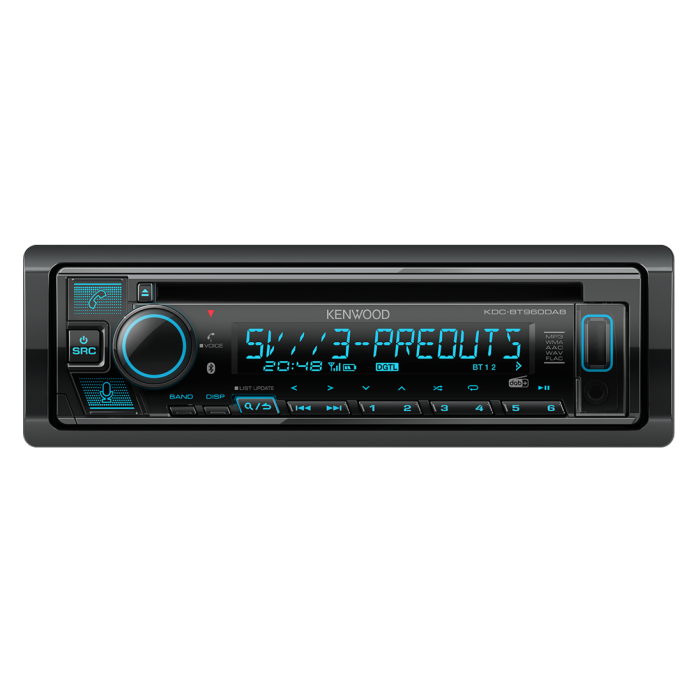

Receptor CD/USB cu radio digital DAB+, tehnologie Bluetooth și serviciu de voce Amazon Alexa.
Bucurați-vă de un control convenabil. Radio digital Cristal Clear DAB+. Tehnologie Bluetooth încorporată pentru apeluri hands-free și streaming de muzică, capacitatea de a vă folosi smartphone-ul ca o telecomandă fără fir și interacțiuni cu serviciul vocal Amazon Alexa bazat pe cloud. Procesorul de sunet digital, Time Alignment și 13-Band EQ vă asigură îmbunătățiri optime ale reglajului sunetului.
Radio digital DAB+, radio FM analogic cu funcționalitate RDS și recepție radio AM.
Tehnologie Bluetooth pentru apeluri hands-free și streaming de muzică
Folosește-ți smartphone-ul ca o telecomandă fără fir cu aplicația KENWOOD Remote
Bucurați-vă de streaming audio doar comutând între cele 5 dispozitive BT conectate cu Music Mix
Serviciu vocal Amazon Alexa bazat pe cloud gata
Redare fișiere muzicale MP3 / WMA / AAC / WAV / FLAC.
Procesor de sunet digital, Time Alignment și 13-Band EQ pentru îmbunătățiri optime de reglare a sunetului.
3 ieșiri RCA de mare putere (5,0 V) pentru a conecta mai multe amplificatoare de putere.
Ecran LCD larg de 1,5 linii cu contrast ridicat, unghi larg de vizualizare și iluminare de fundal cu culori variabile.
Limba meniului în engleză (implicit), rusă, spaniolă, franceză sau germană.

DIN Size	1 DIN
Detachable Faceplate	Yes
Key Illumination	Variable LED
Rotary Encoder & Control Knob	Yes
Dual Accent Key	Handsfree & Voice Assistant
Back-up Memory	Tuner presets & menu settings
Attenuator with Smooth Volume Return	Yes
Touch Sensor Tone	Yes
Digital Clock (24H)	Yes
Clock display when power-off	default off
All-off Select (20/40/60 minutes)	Yes
Built-in Connector	Mitsumi, 16 pin
ISO connector	Yes, Mitsumi to ISO cable
Bluetooth unit built-in	Yes
USB interface x 1	Yes, (Front)
Firmware upgreadable	Yes
Display Features
Display Type	Liquid Crystal Display (LCD)
Display Layout	2 line text + custom icons
Vertical Aligment Liquid Crystal Display	Yes
Display Illumination	Variable by RGB LED
Dimmer Control	Manual / Set by Timer
Brightness control	0 - 31 steps
Demo Mode	Yes
Menu text in selectable language	English(default) / Spanish / French / German / Russian
Cosmetics features
Dress plate	Piano Black
Preset key finish	Piano Black
Escutcheon finish	Piano Black
Volume & operation knob or wheel	Transparant Lighting & Chrome Finished Ring
Triangle Illumination	Red LED
Front terminals dust cover	Yes
Key illumination	Variable by RGB LED
Illuminated front USB port	Variable by RGB LED
Brightness Control (Key)	0 - 31 step
Dimmer Control (Key)	Manual / Set by Timer
Variable color illumination	Yes
Color Zone Concept	2 zone colour control
Brightness zone concept	2 zone brightness control
Chrome-finished accents	Volume knod & faceplate
Tuner Features
Station Select	Manual / Preset
FM Reception	Yes
FM Stereo / Mono Selector	Yes
AM (MW/LW) Reception	Yes
Up/Down Seek/Scan	Yes
Tuner Presets (FM/AM)	24 Presets (18FM / 6AM)
Mixed preset memory (FM & AM)	6 presets
Automatic Memory Entry (AME)	Yes
Tuner Preset Back-up Memory	Yes
Radio Data System	Yes
Radio Text Plus	Yes
Traffic Information	Yes
Local search	Yes
AF Regional	Selectable: AF/AF Reg/OFF
Auto TP search	Yes
Enhanced Other Networks Function (EON)	Yes
Program Type Function (PTY)	Yes
CE DAB tuner features
DAB+ tuner built-in	Yes
Digital Radio Certification Mark	Yes
Intelligent seek	Yes
Ensemble seek	Yes
Tuning mode / Seek mode	Auto1/Auto2/Manual
Service preset	6 ch * 3 bank presets,
Auto service memory (AME)	Yes
Service list by alphabet order	Yes
Preset list	Yes
Related service	Yes
Audio interrupt standby by PTY	Yes
Audio interrupt standby by announcement	Yes
DAB-RDS integrated TI	Yes
Traffic Information	Yes
DAB-AF (Alternative frequency)	Yes
Announcement Switching (ASW) Select	Yes
DMB Audio (Digital multimedia broadcasting)	Yes
Soft linking	Yes
Antenna power supply on/off switch	Yes
DAB antenna included	Yes
Playable Audio File
AAC (*.m4a) files are playable	USB
AAC (*.aac) files are playable	CD/USB
MP3 files are playable	CD/USB
WMA (.wma) files are playable	CD/USB
WAV (.wav) files are playable	USB
FLAC files are playable	USB
CD Features
CD-R/RW Compatible	Yes
MP3, WMA & AAC playback	Yes
CD Text with special Character Support	English(default) / Spanish / French / German / Russian / Greek
D.A.C. processing	24bit
0 bit Mute	Yes
Random Function	DISC Random/Random OFF
Repeat Function	Track Repeat/All Repeat
USB Features
USB terminal	Yes, Front with dust cover
USB Type	2.0 High speed
MP3, WMA, AAC, WAV, FLAC playback	Yes
Repeat/Scan/Random search	Yes
Repeat / Random Play	Yes
Direct search	Yes
Resume play	Yes
Time code display	Yes
1,5A Smartphone Quick Charge	Yes
iPod Features
Made for iPod & iPhone *	Yes
USB Direct Control (Audio, 1 wire, Lightning-connector)	with optional cable KCA-iP103
Music playback	Yes
Alphabet search	Yes
Skip search	Yes
Related search	Yes
Direct Search	Yes
iPod EQ Mode	Yes
Control by hand	Yes
App & iPod control mode	Yes
Spotify App Link	Yes
iAP over Bluetooth	Yes
iTunes Radio App	yes iAP1
Reverse browsing	Yes
Battery charge + power control	Yes
* Always update to latest Apple firmware
Audio Features
Maximum Output Power	50W x 4
MOSFET Power IC	Yes
Auxiliary Type	Mini-jack, front panel
Pre-out	3 RCA
Pre-out Output Level	5V
Preout Rear / Subwoofer Switchable	Yes
Subwoofer Reference Level Adj.	Yes
2-Way X'over network	Yes
3-Way x'over (bi-amp connection)	Yes
Tone Control / Easy EQ	13 band, 8 presets
Balance/Fader/Loudness Control	Yes
Bass Boost Circuit	Off/+1/+2/+3/+4/+5
Att.(-20dB) with smooth Volume Return	Yes
Easy 3-band EQ mode	Yes
Graphic Equalizer + Preset	13-Bands Graphic Equalizer with 8 Presets.
Digital Sound Processor (DSP) Built-in	Yes
Digital Time Aligment (DTA)	Yes
Low- & High-pass Filter	Yes
Speaker Size Control	Yes, Front/rear/subwoofer independently
Kenwood Sound Reconstruction	Yes
Sound Reconstruction	Yes
Space Enhancer	Yes
Realizer	Yes
Stage EQ	Yes
Drive EQ	Yes
Bluetooth General Features
Max num. of regist. phones for HFP & A2DP	5 phones
Hands Free Profile with High Sound Quality	HFP V1.7.1
Max num. of regist. phones for HFP	5 phones
2 phones full time connection	Yes
Audio Streaming (A2DP)	Yes
High Quality Audio Streaming	SBC/AAC
Max num. of regist. units for A2DP	5 units
Serial Port Profile (SPP)	Yes
Phonebook Access Profile (PBAP)	Yes
iPhone & Android automatic pairing via USB	Yes
KENWOOD Remote App Ready
KENWOOD Music Mix Support	Yes
Amazon Alexa ready	Yes
Catchphone / Call Waiting	Yes
Private mode	Yes
Alphabet Search (Phonebook)	Yes
Noise Canceller	Yes
Echo Canceller	Yes
Phone device status display	Yes
Audio device status display	Yes
Signal strength display	Yes
Remaining battery display	Yes
Bluetooth Paring Indicator	Yes
High-quality noise canceling microphone	Rear Wired
Bluetooth firmware upgradeable	Yes
* depends on phone model/make	& Kenwood unit
Connectivity
Front USB & AUX Input	Yes
OEM Wired Remote Control ready	Yes
DC-Cord	Mitsumi to ISO
Power Control (P.CON) wire	Yes
Amplifier pre-out	3 x RCA: Front/Rear/Subwoofer
FM Antenna Input	JASO connector
DAB Aerial input	SMB connector
External microphone input	3,5mm mini-jack
Tuner Specifications
FM range: 87.5Mhz - 108MHz (50Khz step)	Yes
FM Usable Sensitivity	0.56μV/75ohm (S/N 30dBf)
FM Quieting Sensitivity	1.58μV/75ohm (S/N 46dBf)
FM Frequency Response	30Hz ~ 15kHz (± 3dB)
FM Signal to noise ratio (Mono)	68dB
FM Stereo Separation (1kHz)	40dB
MW range: 531kHz - 1611kHz (9kHz step)	Yes
MW Usable Sensitivity	28.5μV
LW range: 153kHz - 279kHz (9kHz step)	Yes
LW Usable Sensitivity	45μV
DAB Tuner specifications
Band III - Frequency range	174.928 MHz - 239.2MHz
Sensitivity	- 100dBm
Signal to noise ratio	90dB
DAB Aerial Connector Type	SMB
Output Voltage	14.4V (10.5V to 16V allowable)
Maximum Current	< 100 mA
Codec Specs
MP3 Format	MPEG 1/2 Audio Layer 3-Files
WMA Format	in accordance with Windows Media Audio
AAC Format	AAC-LC “.aac”(CD&USB) and ".m4a"(USB) files
WAV Format	RIFF waveform Audio Format (only for LinearPCM)
FLAC Format	FLAC files (up to 96kHz/24bit)
CD Specifications
Laser Diode	GaAIAs
Digital Filter(D/A)	8 Times Over Sampling
Digital/Analogue Converter	24 Bit
Wow & Flutter	Below Measurable Limit
Frequency Response	20Hz ~ 20kHz (±1dB)
Total Harmonic Distortion	0.01% (1kHz)
Signal to Noise Ratio	97dB (1kHz)
Dynamic Range	92dB
Channel Separation	90dB
MP3 Decoder	Compliant with MPEG-1/2 Audio Layer-3
WMA Decoder	Compliant with Windows Media Audio
AAC Decoder	AAC-LC".aac" Files
USB Specifications
USB Version compatibility	USB 1.1 / 2.0 full speed
File System	FAT 32 / 16 / 12
Maximum Supply current	1500mA
D/A Converter	24bit
MP3 Decode	Compliant with MPEG-1/2 Audio Layer-3
WMA Decode	Compliant with Windows Media Audio
AAC Decode	"m4a" & "aac" file encoded by AAC-LC format
WAV Decode	Linear - PCM Files
flac Decode	FLAC files up to 96kHz/24bit
Audio Specifications
Maximum Power	50W x 4
Output Power (DIN45324,+B=14.4v)	22W x 4
Preout Level	5000mV / 10kOhm,
Preout Impedance	≤ 600Ohm
Speaker Impedance	4Ohm ~ 8Ohm
AUX Frequency Response	20Hz ~ 20kHz (±1dB)
AUX Maximum Input Voltage	1000mV
AUX Input Impedance	30kOhm
DSP Specifications
Frequency band - Front	62.5Hz ~ 16kHz
Equalizer Gain	–9db ~ +9db
Q Control	0.25/ 0.50/ 1.00/ 2.00
High Pass Filter frequency	Through/50 ~ 220 (Hz)
High Pass Filter Slope	-12/-18/-24 dB/Oct
Low Pass Filter frequency	50 ~ 120(Hz)/Through
Low Pass Filter Slope	-12/-18/-24 dB/Oct
Time Alignment	0 — 610cm(2 cm step)
Car type control	► OFF
► COMPACT
► Full SIZE CAR
► WAGON
► MINIVAN
► SUV
► MINIVAN LONG
Equalizer Type	Graphic
Frequency band	13 bands
Bluetooth specifications
Technology	Bluetooth V4.2
Frequency	2.402 - 2.48 GHz
Output power	+4dBm(max), 0dBm (AVE) power class 2
Maximum range	Line of sight approx. 10 meter
Handsfree profile (HFP)	Yes
Serial port profile (SPP)	Yes
Advanced audio distribution profile (A2DP)	Yes
Audio Codec	SBC/AAC
Audio/Video remote control profile (AVRCP)	Yes
Phonebook access profile (PBAP)	Yes
Accessories
Release keys	2 pieces
Escutcheon	Yes
Installation Sleeve	Yes
DC cord (Mitsumi to ISO)	15 cm
DAB antenna	with 3 m cable
Handsfree Microphone	with 3 m cable
General Specifications
Operating voltage	14.4V (10.5 ~ 16V Allowable)
Maximum Current Consumption	10A
Dark Current Consumption	Below 1mA
Dimensions (WxHxD)	182 x 53 x 155.5mm
Weight	1200 gr.
Operation Temperature Range	-10°C ~ 60°C
Instruction Manuals	Multi-language quick Guide
