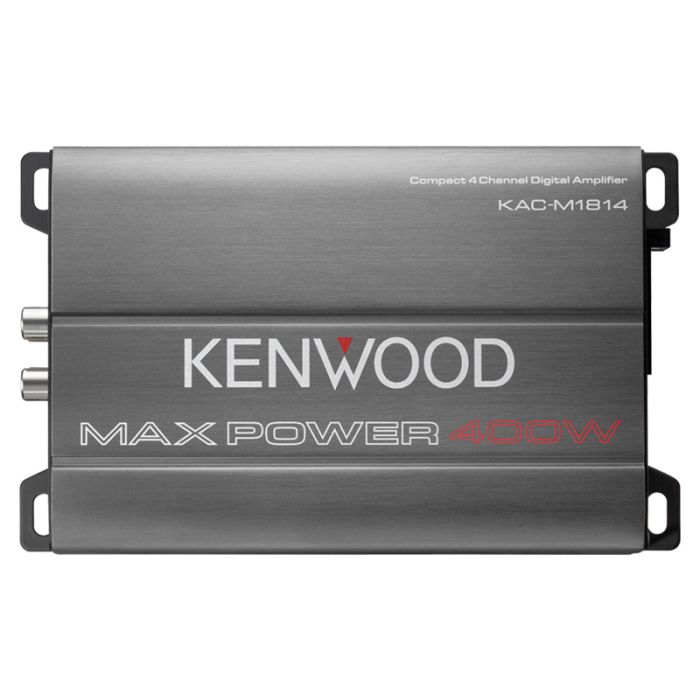

Amplificator digital compact pe 4 Canale, 400W


Amplificatorul KAC-M1814 cu o putere muzicala de varf de 400W, creat pentru utilizatorii de automobile, ATV-uri, motociclete sau ca amplificator marin.



Amplificator digital pe 4 canale (Clasa D)
Putere maximă de ieșire 400W
4 x 45W @ 4 ohmi (standard CEA-2006)
Intrare RCA/nivel difuzor
Pornire/oprire detector semnal
Filtru Variabil Low-&High-Pass
Dimensiune compactă (145 x 45 x 99 mm)
Protecție cu acoperire


Caracteristici tehnice:



Key Features

4 channel digital (Class D) amplifier
Maximum output power 400W
4 x 45W @ 4ohm (CEA-2006 standard)
RCA / Speaker level input
Signal sensing turn-on/off
Variable Low- & High-Pass filter
Compact size (145 x 45 x 99mm)
Conformal coating protection
Amplifier Features

Class D Amplifier	Yes
Full Range Digital Amplifier	Yes
Load Capability	4Ω Stable
Maximum power output	400W
Rated power output (4Ω)	45W x 4 (4Ω)
CEA-2006 Compliant	Yes
Low-pass Filter	Yes
High-pass Fliter	Yes
Switched Mode Power supply	Yes, Power MOS-FET
Signal Sensing Turn-on	Yes
Line in	4 RCA / Speaker level
Speaker level Input	Yes
Die-Cast Aluminium Heat Sink	Yes
DC cable Supplied	Yes
Amplifier-Specifications

Rated power output (CEA-2006)	45Watts RMS x 4 at 4 ohms and 1% THD
Low-pass Filter	50~200Hz (-12dB/oct)
High-pass Fliter	50~200Hz (12dB/oct)
Input Impedance	10kΩ
Signal to Noise Ratio	98dB
Signal to noise ratio (CEA-2006)	82dBa (Reference: 1 Watt into 4 Ohms)
Frequency response (+0dB, -3dB)	20Hz ~ 20Hz
Operating voltage	14.4V (11V ～ 16V allowable)
Maximum current consumption	15A
Dimensions (WxHxD)	145 x 45 x 99(mm),
Weight	0.7kg
Unit weight in individual package	0.99 kg
