Specificatii Tehnice

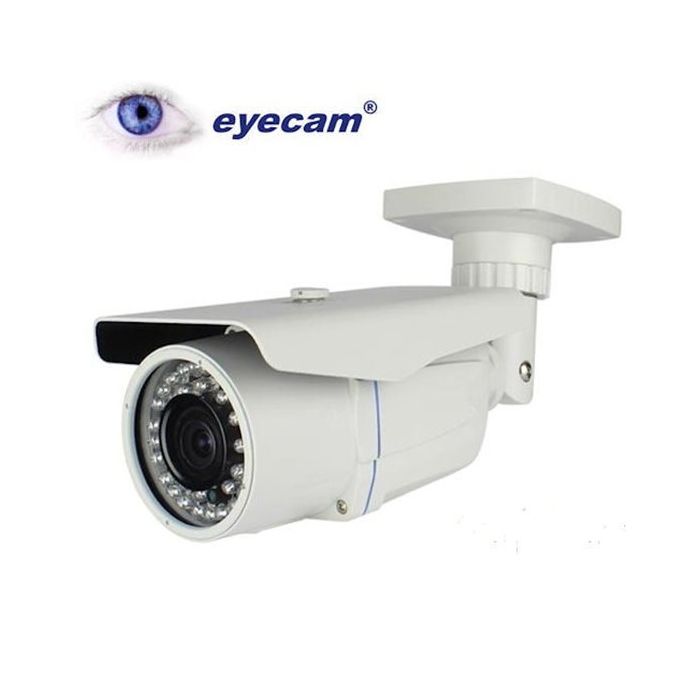

Camera color 700TVL de exterior cu OSD EC-258 960H
Senzor imagine 1/3”
Producator CCD: SONY Effio-E
Utilizare: exterior/interior
Rezolutie (numar linii TV): 650TVL/700TVL(B/W) (Effio-E + 673AKCCD)
Numar pixeli: PAL:976(H)×494(V);  NTSC:976(H)×582(V)
Iluminare minima: 0.001 Lux /F2.0
Lentila: 2.8-12mm inclusa
Zoom si focus reglabile manual din exterior
Numar leduri IR: 42 leduri de 5mm IR-LED
Distanta de acoperire a tunului IR: 35 metri
Lungime de unda: 850nm
Factor de protectie: Rezistenta la apa: IP66
Raport Semnal/zgomot: >48dB
Iris electronic: NTSC:1/60~1/100,000; PAL:1/50~1/110,000
Gamma: 0.45
Meniu OSD
Exposure: Auto
Shuter/ AGC: Auto/Manual
Compensarea la alb: ATW / User1/User2
Backlight: OFF/ON/BLC/ HLC
Setari imagine: Mirror/Brightness/Contrast/Sharpness/Hue/Gain
ATR: ON/OFF
Detectie miscare: OFF/ON(Detect sense/ Area Sel)
Privacy Masking: OFF/ON (4 Zone)
Day/Night: True Day and Night (Auto/ Day / Night / Ext. D&N)
2D-NR: OFF/ON (Y/C level)
Camera ID: OFF/ON
Dimensiune: 230(L)x86(W)x83(H)
Greutate: 1,6 Kg, IP66
Alimentare: DC12Vą10% ; DC 12V
