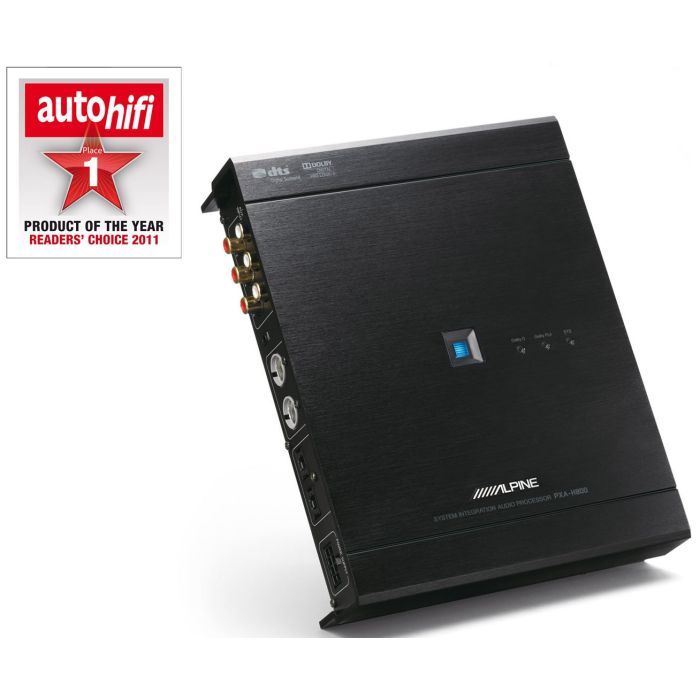

PXA–H800 contine o gamă extinsă de capacități de procesare audio care maximizeaza sunetul oricarui sistem, indiferent dacă este un sistem all-Alpine sau un sistem cu diverse branduri.
    Procesorul oferă toate funcțiile audio necesare pentru a permite sistemului să atingă cele mai înalte niveluri de calitate a sunetului.
    Pentru a obtine cea mai bună utilizare la PXA-H800, va sugeram sa folositi RUX–C800 (se vinde separat). RUX–C800 va ofera o comandă completă a tuturor functiilor la PXA-H800 și afișaj cu informații detaliate.
    Cu PXA-H800, vă puteți bucura de o adevărată experiență de sunet surround pe 5.1 canale, la fel cum obțineți de la sistemul home cinema. Puteți auzi sunet multi-canal din surse de film și de muzică în formatele Dolby Digital și DTS Digital Surround. Unitatea oferă, decodare Dolby Pro Logic II, astfel încât să vă puteți bucura chiar de înregistrări stereo în sunet surround.



Caracteristici tehnice:

Sound Tuning

    Graphic Equalizer: 31 Bands (Front, Rear, Center), 10 Bands (Subwoofer)
    Parametric Equalizer: 10 Bands (Front, Rear, Center), 5 Bands (Subwoofer)
    Crossover Adjustment : Highpass, Lowpass, Bandpass
    8-channel Time Correction
    ImprintEQ with 3 preset and fully customizable target curves
    RoadEQ
    Auto Time Correction (Auto TCR)
    Dolby Digital
    Dolby Pro Logic II
    dts Digital Surround
    Bi-Phantom Function
    MediaXpander Plus
    Euphony
    AUX IN Gain Adjustment
    AUX Output Level Adjustment
    Navigation Voice Mix Level Adjustment

General

    Ai-NET Connection
    Number of Input Channel: 6 (Analog – RCA or Speaker Level), 2 (Optical Digital), 2 (Ai-NET)
    Type of Analog Input: RCA (Speaker Line Connection Adapter Bundled)
    Type of Digital Input: TOSLINK
    Navigation Voice Guidance Input: RCA Input on Power Supply Connector
    Number of Output Channel: 8 (RCA Output)
    24-bit Ultra High Performance DAC
    24-bit ADC
    Twin 32-bit Floating-point Processing DSP
    Extremely Low Jitter Management Circuit
    4V Preout
    S.T.A.R. Circuit
    High Grade Audio Component Adopted
    Gold-plated Terminals
    PC Control Possibility for Sound Tuning Functions (Software Bundled)
    Microphone Bundled
    USB Cable Bundled
    Ai-NET Connection Cable Bundled (5.5m)

Sound Tuning

    Graphic Equalizer Number of Bands: 31 Bands (Front, Rear, Center), 10 Bands (Subwoofer)
    Graphic Equalizer Level Adjustment: ±12 dB (0.5dB step)
    Parametric Equalizer Number of Band: 10 Bands (Front, Rear, Center), 5 Bands (Subwoofer)
    Parametric Equalizer Frequency: 20/22/25/28/31.5/36/40/45/50/56/63/71/80/90/100/110/125/140/160/180/200/220/250/280/315/360/400/450/500/560/630/710/800/900/1k/1.1k/1.2k/1.4k/1.6k/1.8k/2k/2.2k/2.5k/2.8k/3.2k/3.6k/4k/4.5k/5k/5.6k/6.3k/7.1k/8k/9k/10k/11k/12.5k/14k/16k/18k/20kHz (Front, Rear, Center)
    Parametric Equalizer Frequency: 20/22/25/28/31.5/36/40/45/50/56/63/71/80/90/100/110/125/140/160/180/200Hz (Subwoofer)
    Parametric Equalizer Level Adjustment: ±12 dB (0.5dB step)
    QFactor: 0.5; 1; 1.5; 2; 2.5; 3; 4; 5
    Time Correction: 0 to 20ms (0.05ms step)
    Crossover Frequency: 60 step (0 to -36 dB/oct.)

Dimensions

    Chassis Size (W x H x D): 169 x 50.8 x 215 mm

General

    Power Requirement: 14.4 (11-16) V.DC
    Frequency Response: 20Hz – 20kHz
    Signal to Noise Ratio (RCA Analog Input): >103dB (IHF-A)
    Signal to Noise Ratio (Digital Input): >110dB (IHF-A)
    Channel Separation: 90dB
    Input Sensitivity (RCA Input): 2V
    Input Sensitivity (Speaker Level Input): 7V
    Rated Output: 4V (with 10k ohms load)
    Distortion Factor: 0.01%
    Input Impedance: 10k ohms or higher
    Output Impedance: 1k ohms or less
    Operating Temperature: -20°C to +60°C
    Weight: 1.35kg
